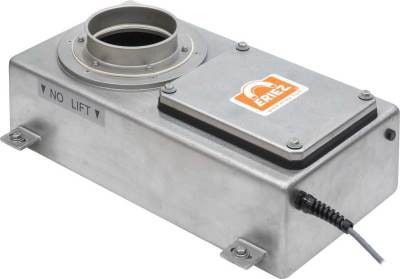

Eriez offers the Xtreme Vertical Form, Fill & Seal Metal Detector. This unit requires no metal-free area above or below the sensing head. The VFS metal detector eliminates the need for modifications and plastic hoppers. The metal detector connects directly to a customer’s existing stainless steel hopper and forming tube with simple Jacobs connectors.
Eriez’ Xtreme VFS metal detectors are suitable for washdown, detect millimeter-sized metal spheres and feature food grade pipe and stainless steel construction. Xtreme VFS metal detectors are available in 3-inch, 4-inch, 6-inch, 8-inch and 10-inch aperture sizes. Total installation height requirements vary from 9.75 inches to 12.75 inches, based on aperture size.
Xtreme VFS metal detectors offer full-color, icon-driven controls and configurable output relays. A start-up and test kit is included with every order.
Eriez’ Smart Service Portal enables technicians to troubleshoot the Xtreme VFS metal detector remotely via the internet through a safe and secure connection. In addition, Eriez’ Smart X7 Link software allows customers to access and control their unit via their company’s intranet, giving them the capability to make changes to detector settings and download reports.
