- Continuous, real-time, inline moisture measurement for bulk solids such as materials in screw feeders, bins or conveyor belts
- Penetrates up to 8″ into the material for total moisture measurement with accuracy up to ±0.1%, depending on material
- Uses a capacitive method to detect changes in dielectric constant and high-frequency attenuation; accurately measures total moisture, not just surface
- Measurement Range of 0–85% residual moisture
- Temperature & Pressure Limits: Ambient, 32°F to 158°F; Process, 32°F to 194°F (high-temp version up to 248°F); Pressure, 0–87 psi

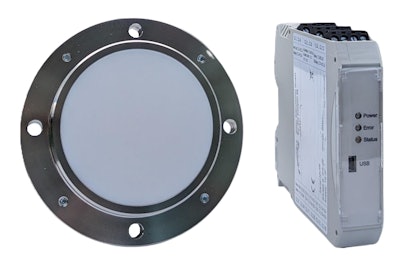

- Stainless steel sensor body with interchangeable sensor faces (POM, ceramic, or Teflon)
- 1× analog (4–20 mA or 0–10 V), 1× relay, 1× transistor, 1× RS485 Modbus; 4× digital inputs (8–36 VDC)
- Stores up to 24 calibration recipes (16 selectable via digital input), supports long-term data logging, alarms, and Modbus integration
- Simple—weld sensor flange, install sensor, and connect to transmitter; supports cable runs up to 1,640 ft
- NEMA 6 (IP67) rated, 24 VDC power supply, max 1.5 W; ATEX Zone 20/0 versions available
