- Low-cost, non-contact dust monitoring and broken bag/filter leak detection for industrial environments
- Early detection of filter wear/failure, pre-alarm and main alarm outputs, no maintenance, unaffected by dust build-up, rugged design, auto-calibration
- Installed on the clean air side of bag or cartridge filters; ideal for high particulate load, air recirculation systems, and facilities with emission regulations
- Operates on the triboelectric principle—detects naturally charged particles in airflow; ignores static deposits and offers adjustable sensitivity
- Simple—weld a ½″ NPT threaded socket to ductwork and insert the stainless-steel sensor rod (should not touch opposite wall)
- Detects dust concentrations starting from 0.1 mg/m³
- Temperature & Pressure Limits: Ambient, –4°F to +122°F; Process, –4°F to +302°F (DustIQ EX: +14°F to +356°F); Pressure, 0–29 psi (DustIQ EX: 0–16 psi)

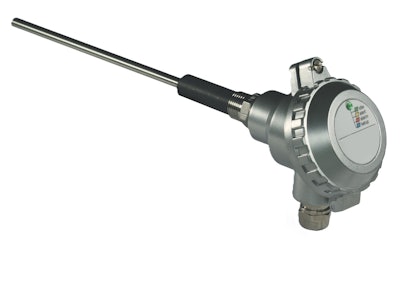

- Construction: Aluminum housing, stainless steel sensor rod (9.8″ or 19.6″ length standard; custom available)
- Power & Outputs: 24 VDC, <2 W, 2× relay outputs (max 60 V AC/DC, 100 mA) for alarms
- Protection & Certifications: NEMA 4X (IP65) protection; General Purpose and ATEX Zone 20/21 explosion-proof versions available
