Optimize Belt Cleaner Tension to Maximize Performance & Life

Advice for cleaner, safer, more productive conveying

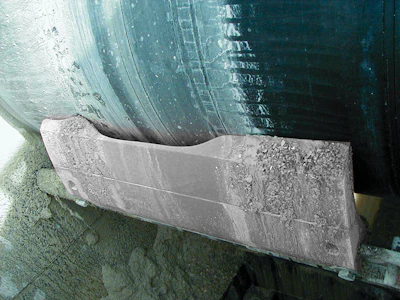

1416b1

Given the number of conveyor-related accidents that occur during routine maintenance and cleanup, every bulk material handler has a vested interest in technologies to help reduce hazards and prevent injuries. Seemingly mundane tasks such as adjusting belt cleaners and removing spillage often require employees to work in close proximity to the moving conveyor, where even incidental contact can result in serious injury in a split second. Further, spillage can contribute to the risk of fire by interfering with pulleys and idlers and by providing potential fuel. Even worse, in confined spaces, airborne particles can create the right ingredients for an explosion.

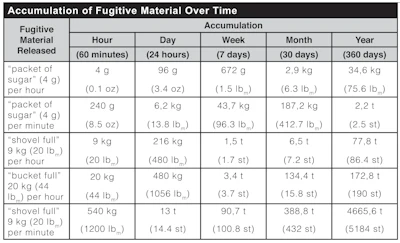

The buildup of fugitive material can occur with surprising speed. As the table below illustrates, spillage in an amount equal to just one sugar packet (about 4 grams) per hour will result in an accumulation of about 700 grams (1.5 pounds) at the end of a week. If the rate of escape is 4 grams per minute, the accumulation will be more than 45 kg (nearly 100 pounds) per week, or more than two tons per year. If the spillage amounts to just one shovelful per hour (not an uncommon occurrence in some operations), personnel can expect to have to deal with more than 225 kg (nearly 500 pounds) of fugitive material every day.

Fugitive Material Accumulation F4 C01 T1
